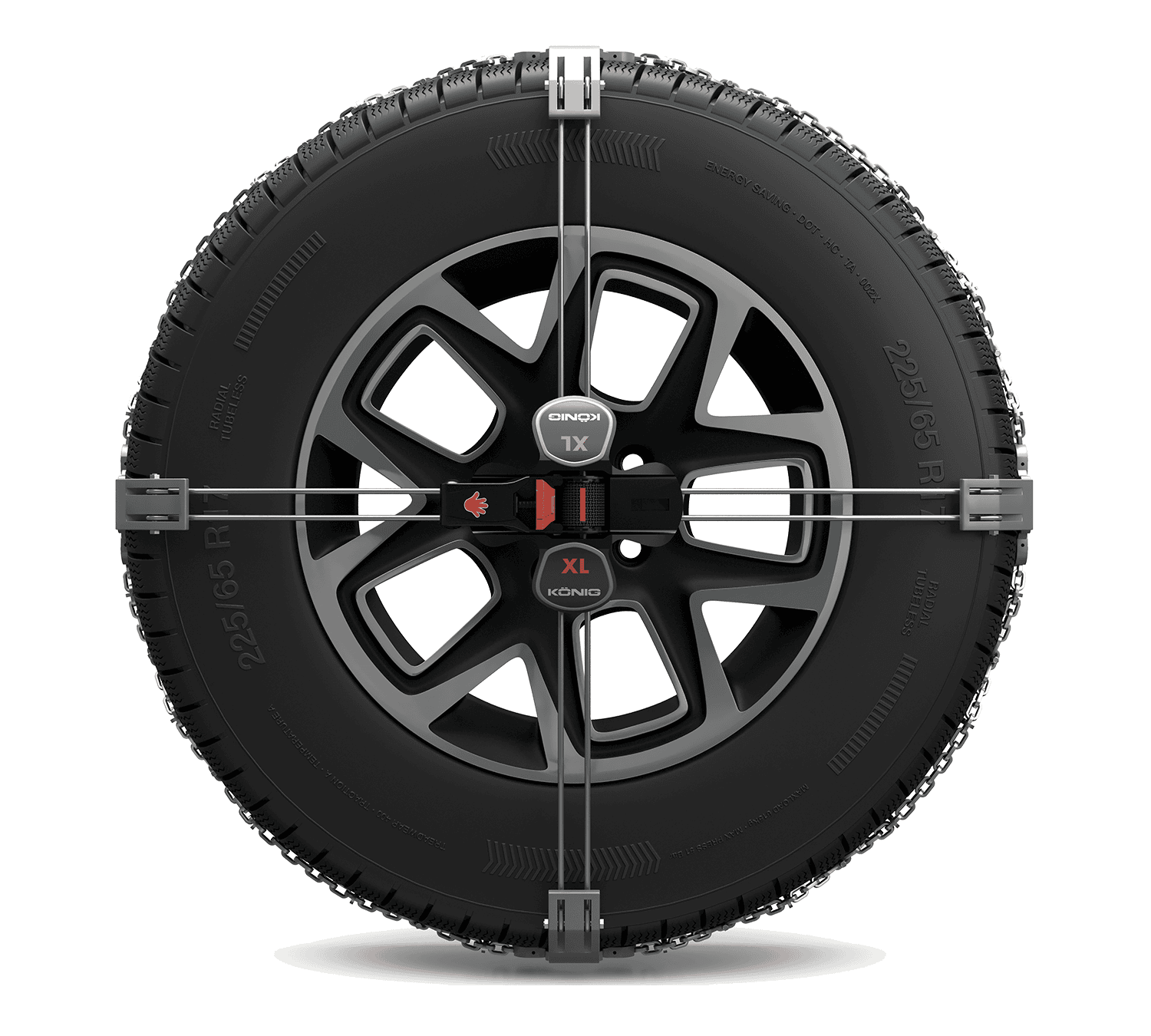

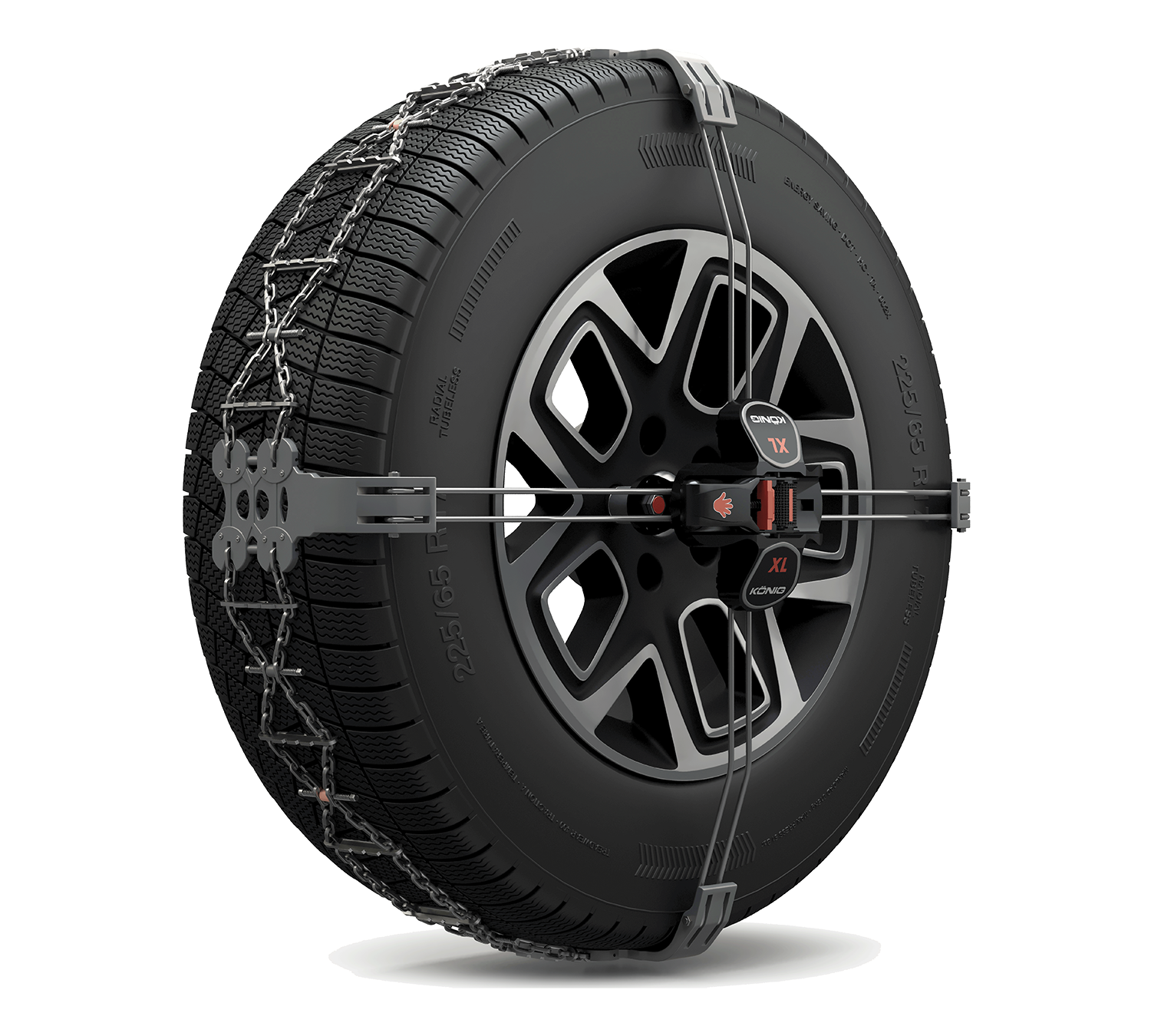

The König K-Summit XL represents the state of the art of external snow chains from design and from vehicle integration perspective and it comes to the market with a complete set of proprietary unique features positioning the product on the highest market end.
It is no coincidence that the K-Summit XL has been selected by several manufacturers as solution for their zero-clearance applications in most of the cases due to the high proximity between inner wheel side and suspension strut.
The König K-Summit XL snow chain is a supplementary grip device certified according to Ö-Norm V5117 and EN 16662-1 thus fulfilling any Winter Equipment legal requirement.
The König K-Summit XL design is based on a central body the 4 arms are linked to. The central body features an integrated ratchet with a 9x factor, meaning that it make the tensioning operations completely effortless.
1 of 3The König U-Adapt is the universal adapter compatible with hexagonal headed bolts and nut from 17mm up to 22mm.
2 of 3The K-Summit XL arms are manufactured in harmonic steel and they are designed with specific geometries prodiving a leaf-spring effect.
They get flat under load and, once the load is tranferred, they return to the original shape. This specific aspect allows the chain to automously slip onto the tyre tread while driving without requiring additional vehicle stops for any retensitioning or fixing.
3 of 3
The König K-Summit XL plates act as joint between the arms and the chain cross-sections.
The plastic plates are manufactured in PU and each of them features 8 hard metal studs to provide more grip when the plate touches the ground.

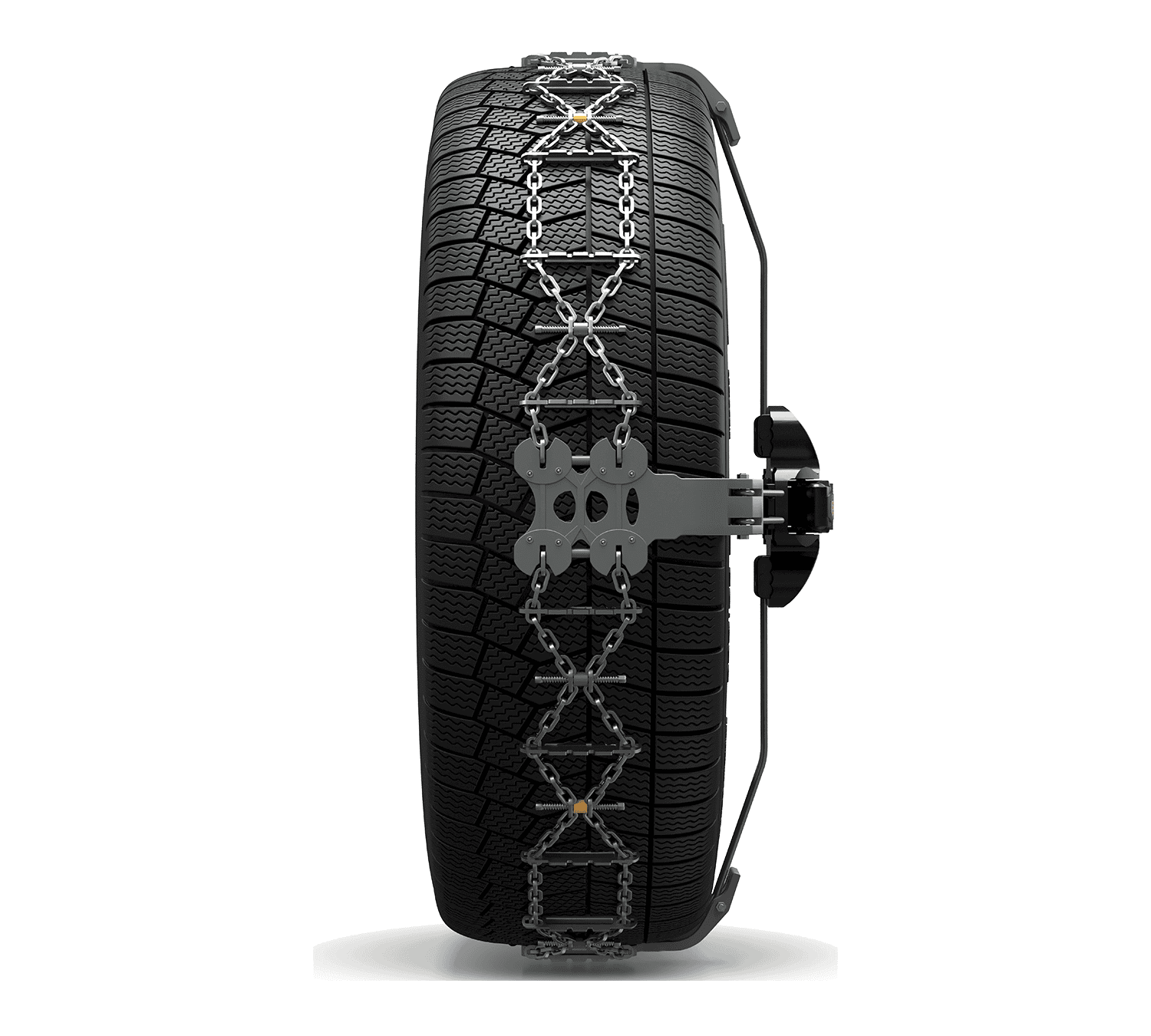

1 of 6The K-Summit XL cross-sections lay on the external side of the tyre without interfering on the internal side with the typical inner wheelhouse components such as suspension strut, MacPherson spring perch, multilink ball joints, swaybar links and brakelines.
2 of 6The König K-Summit XL cross-sections include welded traction bars to provide additional digging properties and traction in general.
3 of 6The König K-Summit XL cross-sections are based on a 10mm chain links representing the best compromise between thickness and performances.
4 of 6The tensioning elements present on the König K-Summit XL snow chains offer superior elastic properties and provide a real a fine-tuning of the tensioning level.
The tensioning elements are based on a double spring system which gets compressed under load, allowing the chains cross-section tensioning and micro-adaptation to the specific tyre aspects (size, tread, wear level).
5 of 6As per the tensioning elements, the adjusting elements are based on a double spring system getting compressed under load.
The adjusting elements (4 on each K-Summit XL) are meant to be removed to reach a larger chain rolling circumference and subsequently fit larger tyres.
6 of 6

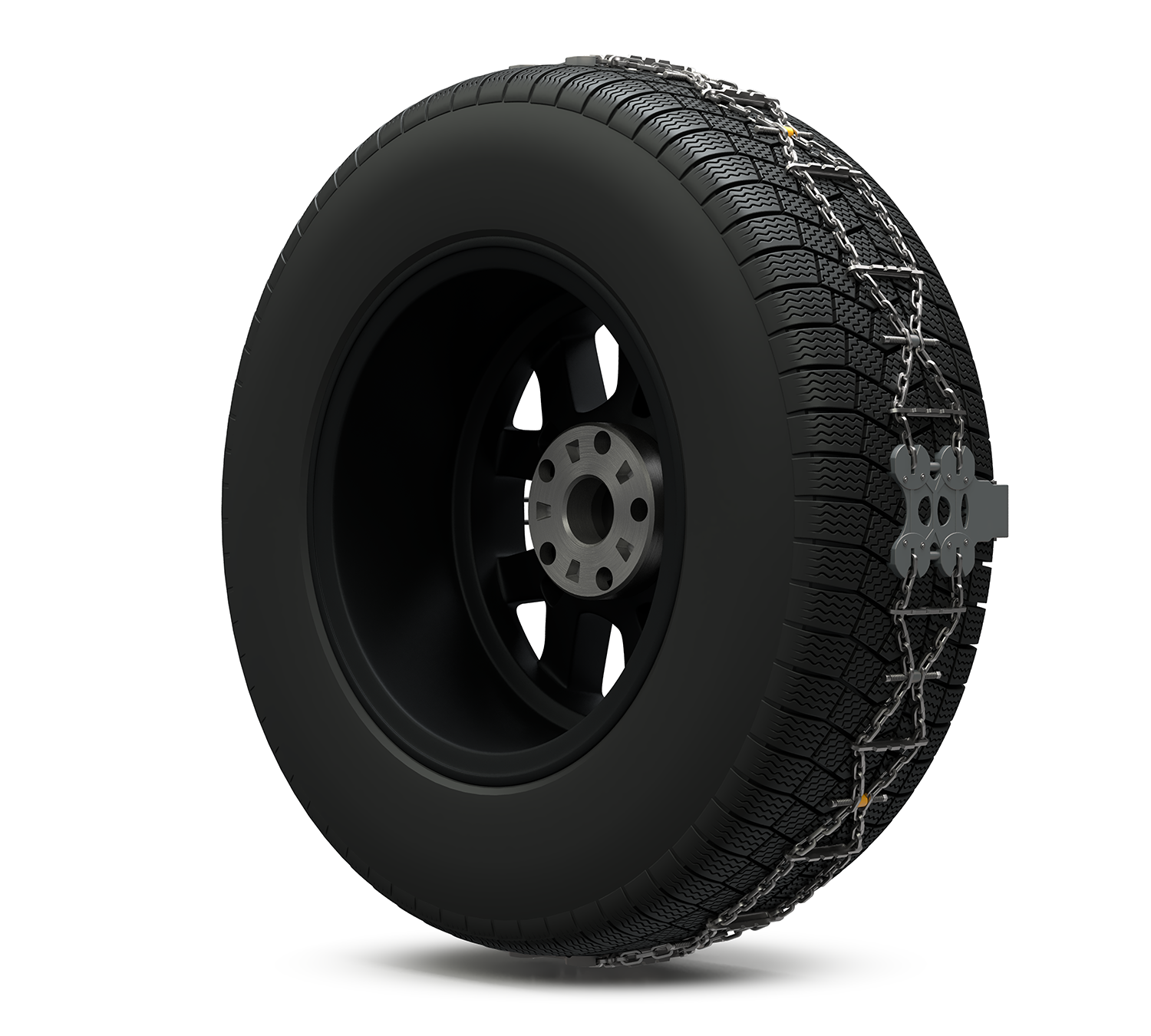

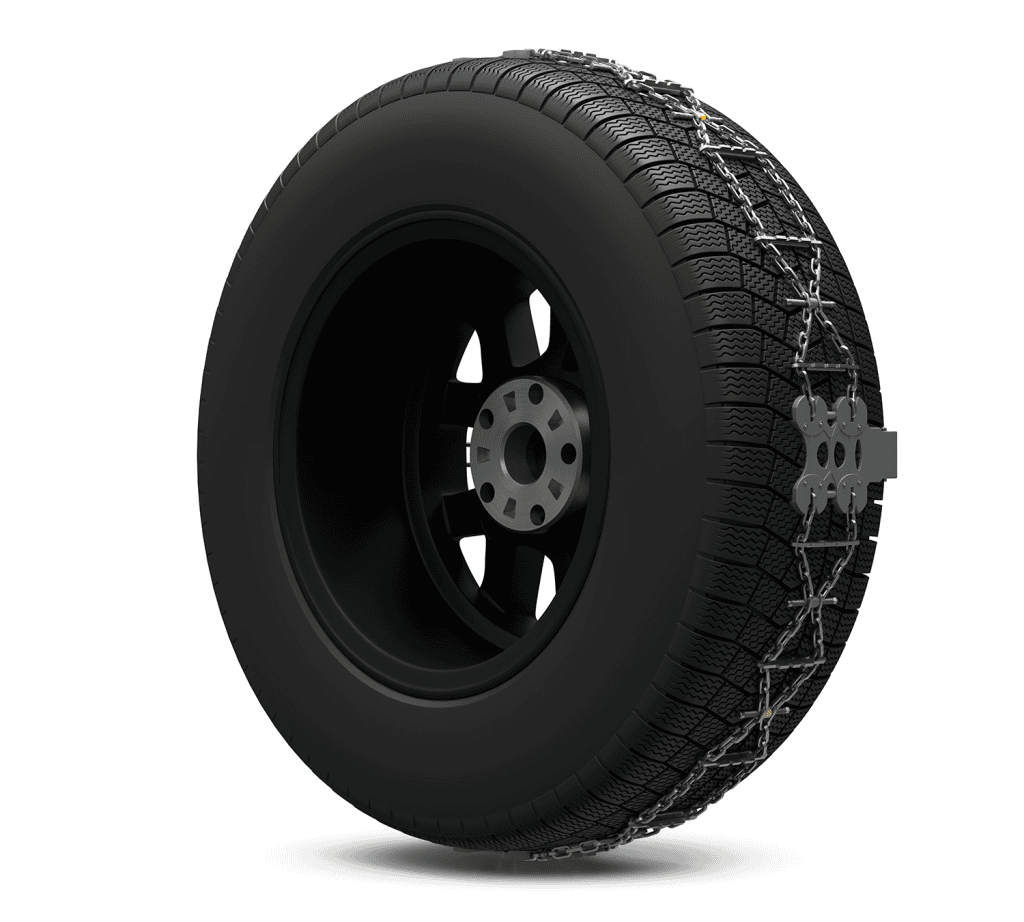

When the K-Summit XL is fitted, the inner side of the wheel is completely free from any snow chain part or component.
1 of 1
It's the only solution for Crossovers and Compact SUVs with zero clearance requirements
The most all inclusive package: the product comes with all the components necessary for the chain adjustment and installation, including a full set of proprietary premium tools.
The product has a wider compatibility with different tyre sizes compared to traditional snow chains and it can be shared more easily on different vehicles of the same category.
Compatible with vehicles with 0mm clearance requirements (EN16662-1:2020 Class 0/12mm)
